CAT C9 C15 C16 C18 C27 C32 Stud Removal & Repair Tool Kit 6V-9050
Product Highlights
- OEM Compatibility: Direct replacement for OEM parts numbers 6V-9050 and 6V9050.
- Engine Compatibility: Specifically designed to remove broken exhaust manifold studs and bolts on CAT models 3200, 3300, 3400, C-9, C-15, C-16, C-18, C-27, and C-32.
Comprehensive Tool Kit

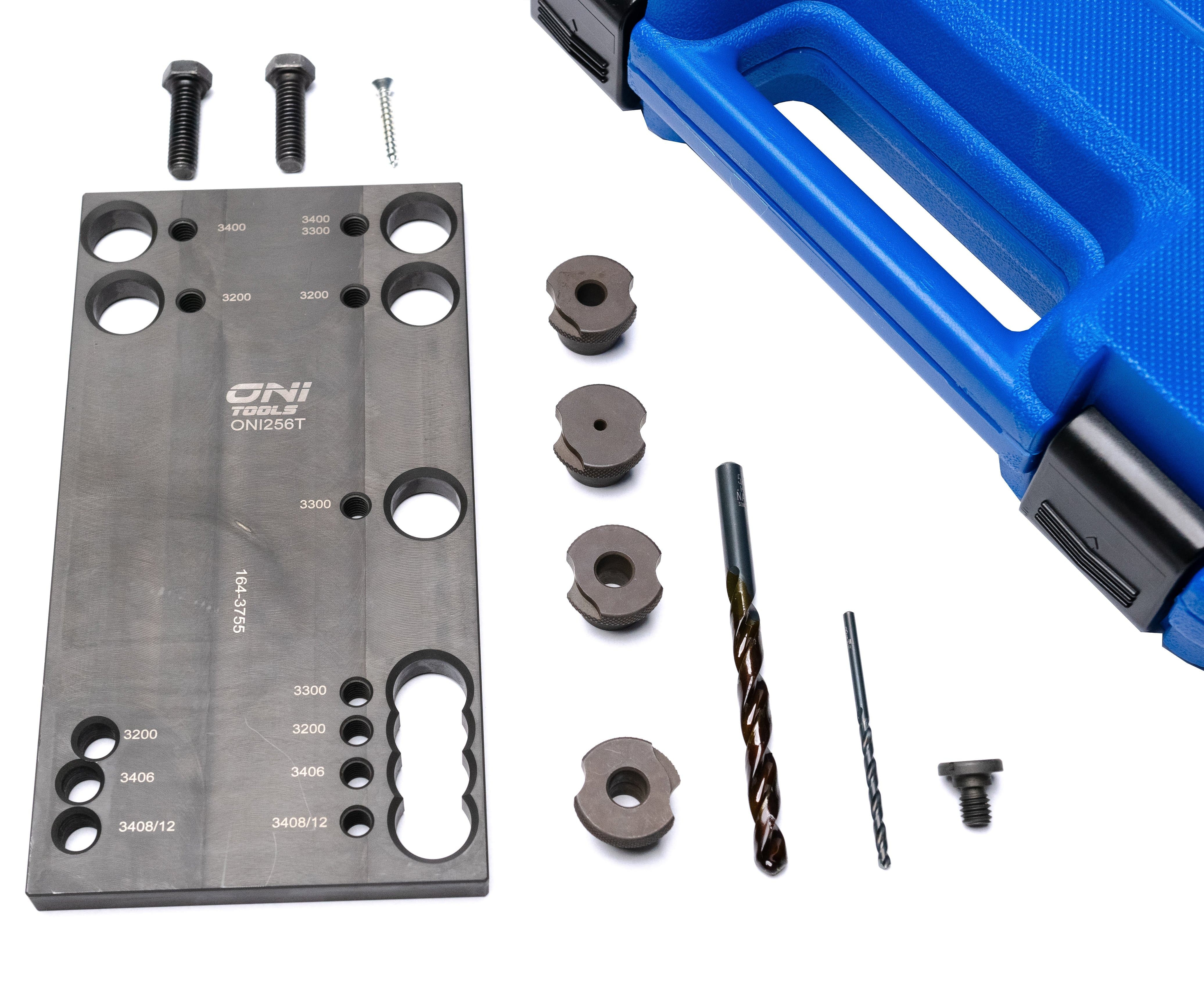

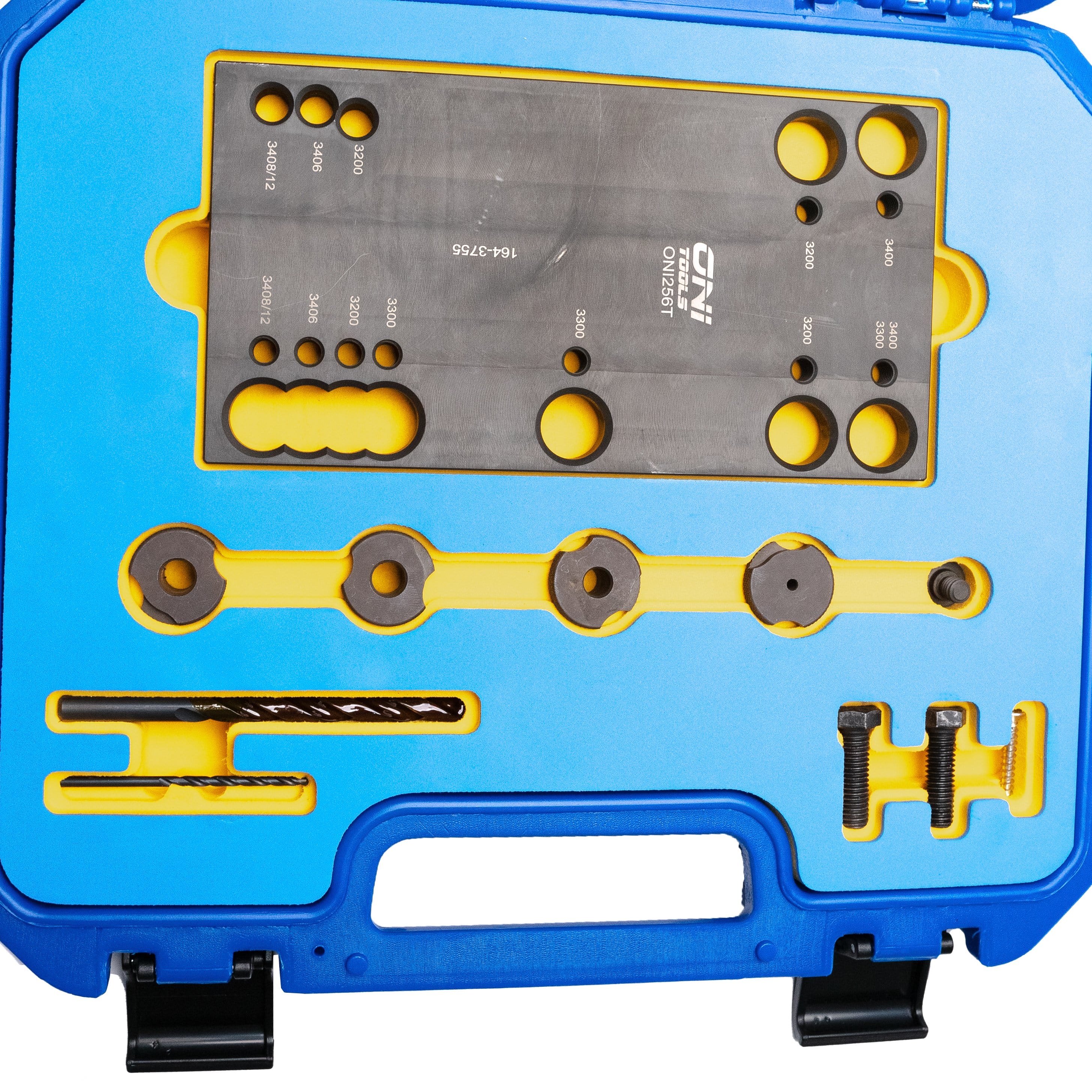

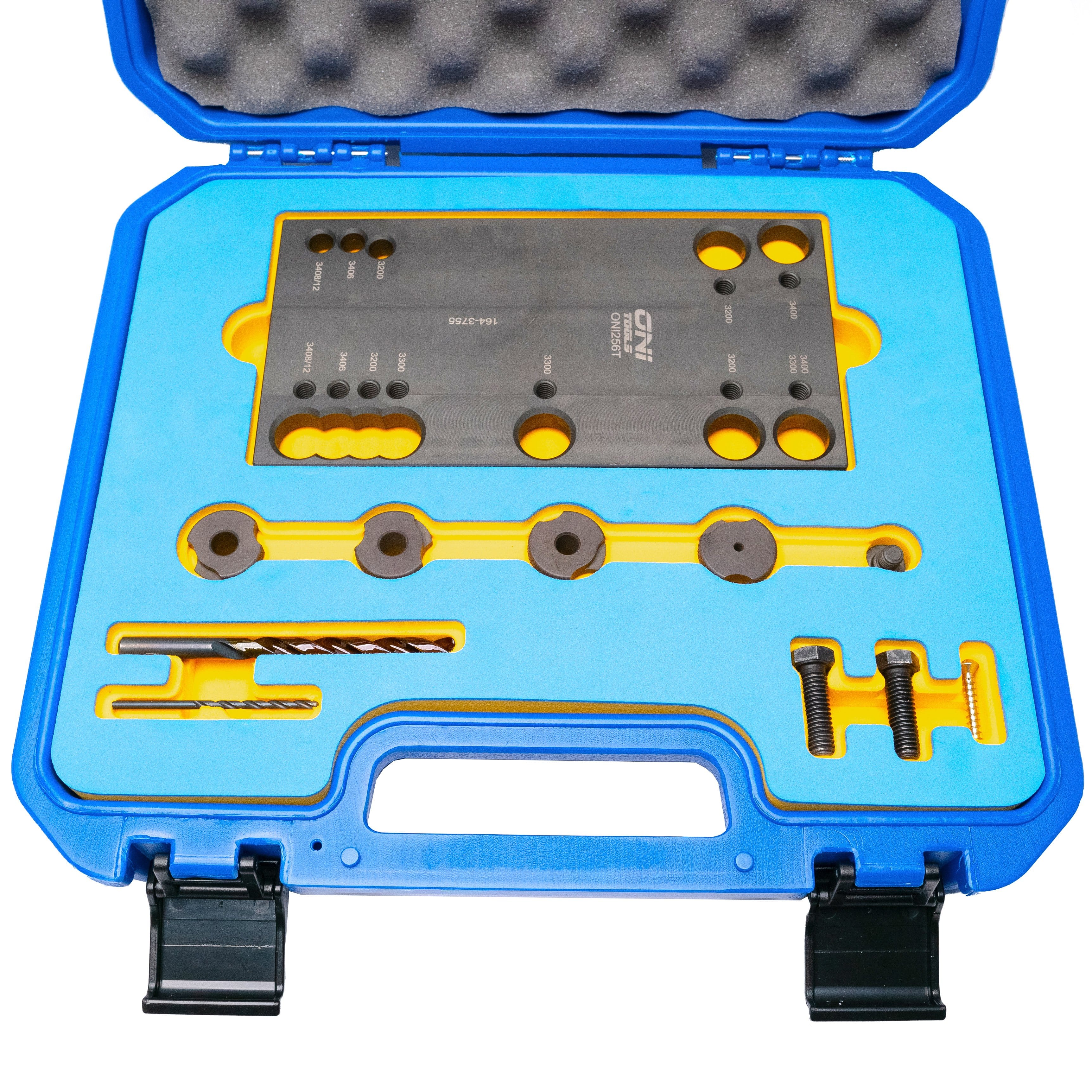

- Complete Set: Includes a drill fixture, 2 alignment bushings, 2 drill bushings, and 2 drills.
- Precision Tools: Each component is engineered to ensure accurate and efficient removal of broken studs.
Detailed Usage Instructions
-
Preparation:
- Use a disc grinder to grind the broken stud, ensuring a flat surface.
- Secure the 164-3755 Drill Fixture to the cylinder head for stable drilling.
-
Drilling Process:
- Start with the 1/8-inch drill and drill bushing to drill completely through the broken stud.
- Follow up with the 5/16-inch drill and drill bushing to remove the stud.
-
Engine-Specific Instructions:
- 3200 Family Engines: Bolts are used to retain exhaust manifolds. HeliCoil is acceptable for repairing these heads.
- 3300 and 3400 Family Engines: Studs with taper lock threads are used to retain exhaust manifolds. HeliCoil cannot be used for repairing these cylinder heads.
Why Choose Oni Tools?
Exceptional Quality:
- Durability and Reliability: Crafted from high-grade materials, our tool set is built to last and perform under the toughest conditions.
- Precision Manufacturing: Each tool is engineered with meticulous attention to detail, ensuring top-notch performance and accuracy.
User-Friendly Design:
- Ease of Use: Designed for both professional mechanics and DIY enthusiasts, simplifying the process of removing broken exhaust manifold studs.
- Comprehensive Support: Oni Tools provides detailed instructions and expert customer support to guide you through the process.
Reliable Performance:
- Guaranteed Excellence: We stand by the quality of our products, guaranteeing their durability and effectiveness.
- Customer Commitment: Our dedication to customer satisfaction ensures you receive the best tools and value for your investment.
