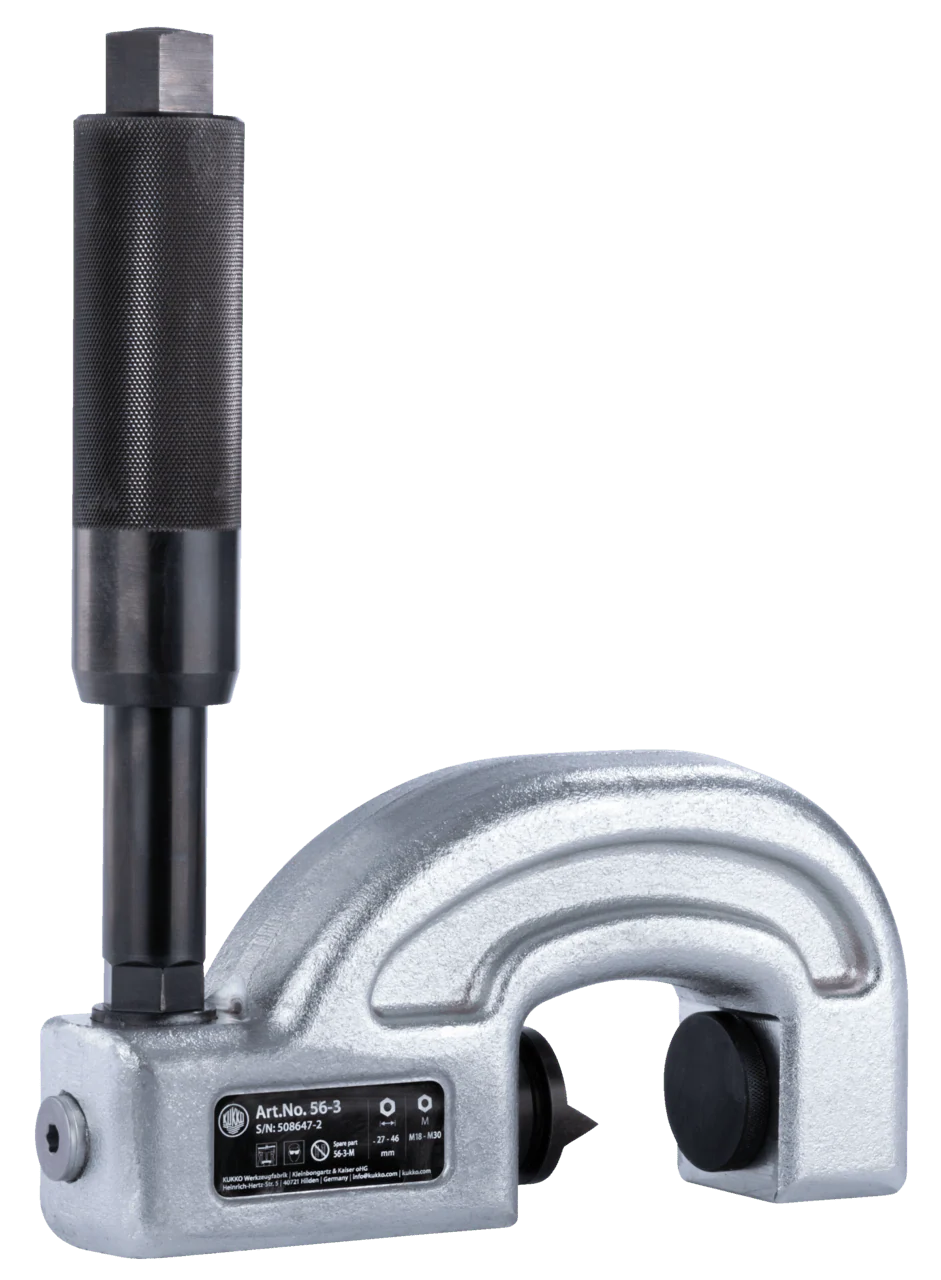

Kukko 56-3 Single-Edged Grease Hydraulic Nut Splitter 1 1/16 - 1 7/8 inch (27 - 46 mm)



• For splitting particularly large tight or over-twisted nuts without damaging the bolt thread of quality grades 5, 6, 8 and 10.
• Very sharp cutting through facet cut.
• Hardened chisel cutting edge
• MPN#: 56-3
• Shipping Disclaimer: If the product has to ship directly from the manufacturer it may take 5-7 business days.


Technical Attribute	Metric	Imperial
Nut size	27 - 46 mm	1 1/16 - 1 7/8 inch
Cutting width of chisel	37 mm
Length without spindle	210 mm
Maximum torque	50 Nm	6.5 ft lb
Weight	6.6 kg
Cutting width of chisel (inch)		1 1/2 inch
Length without spindle (inch)		8 1/4 inch
Maximum load		23 US t



Product Data Sheet

Advantage:

• Due to the hydraulics, only a little force is needed.
• Chisel available as a replacement part, time-saving order process thanks to numbering system

KUKKO quality standards

• Quality made in Germany.
• Strong design, high performance and long service life.
• Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
• Safety label to ensure protection of intellectual property.
