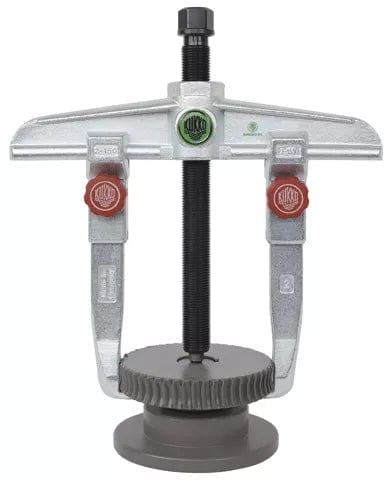

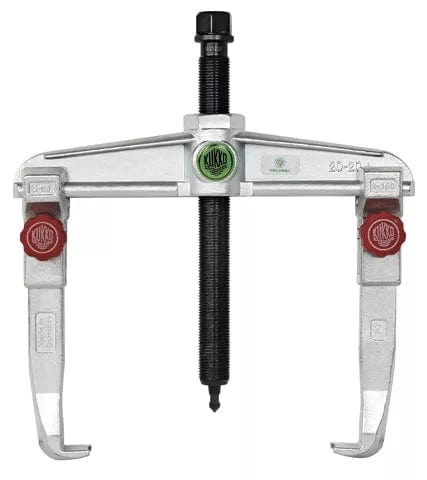

Kukko 20-20+ Universal 2-Jaw Puller With Narrow Quick Adjusting Jaws 1 5/8 - 7 7/8inch (40 - 200mm)

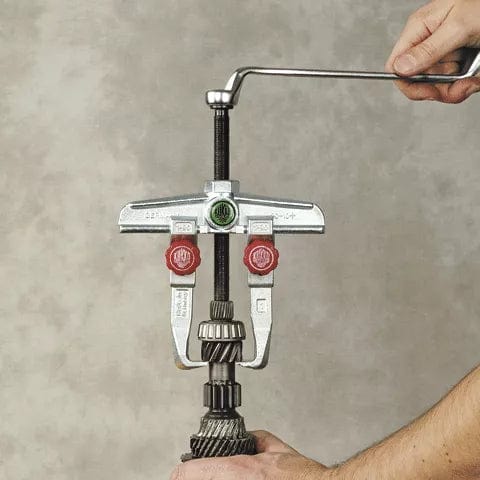

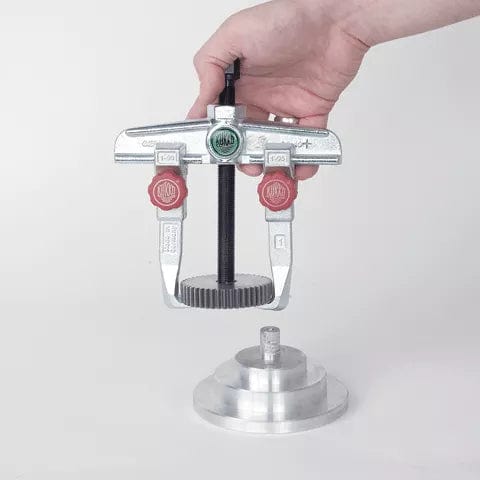

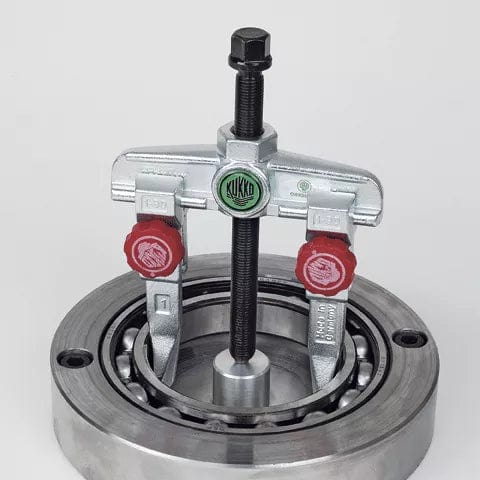

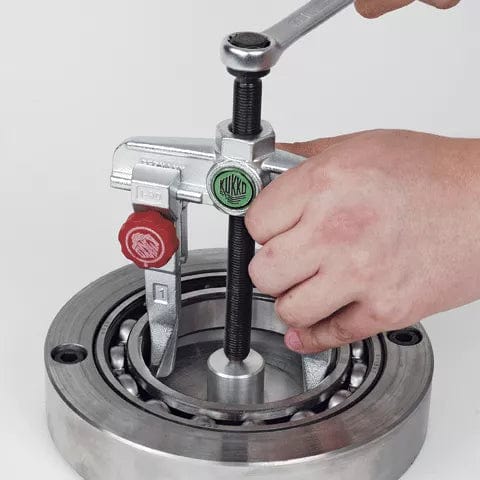

• For removing bearings, gears, discs, etc.
• Standard pulling hook with quick adjusting capability quick adjust.
• Parallel pulling hooks in every position, even with full load.
• Pulling hooks with infinitely variable adjustment on the cross-beam.
• Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
• Mechanical pressure screw.
• Milled thread treated with special coating.
• Two-arm design for space-saving operation.
• MPN #: 20-20+
• Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute	Metric	Imperial
Spread	40 - 200 mm	1 5/8 - 7 7/8 inch
Depth	150 mm	5 7/8 inch
Spread used internal	100 - 260 mm	3 7/8 - 10 1/4 inch
Hexagon drive (male)	22 mm
Maximum load	6 t	6.5 US t
Maximum torque	150 Nm	110.5 ft lb
Weight	3.315 kg
Space below	9 mm	3/8 inch
Space next to it	40 mm	1 5/8 inch
Jaws	2	2



Product Data Sheet



Advantage

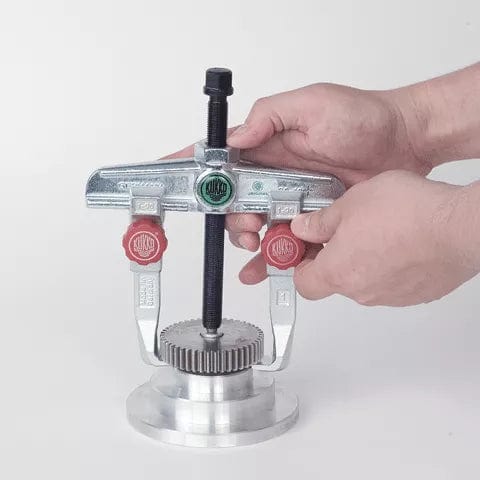

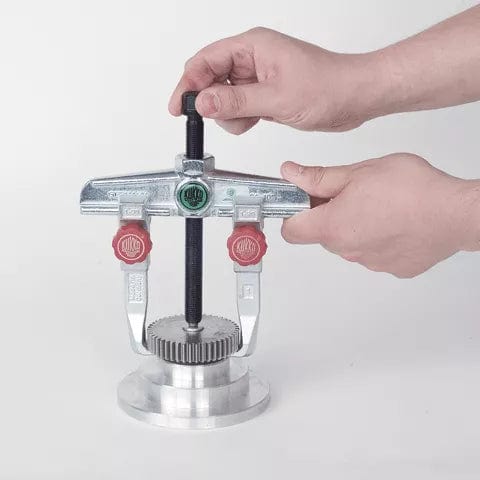

• A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.

• Can be installed on various pulling hooks and variable reach thanks to jaw extensions.

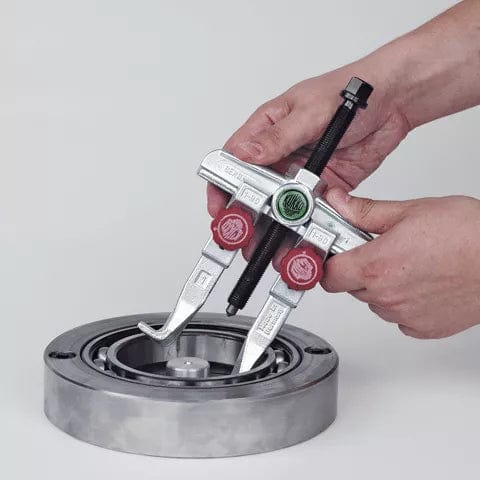

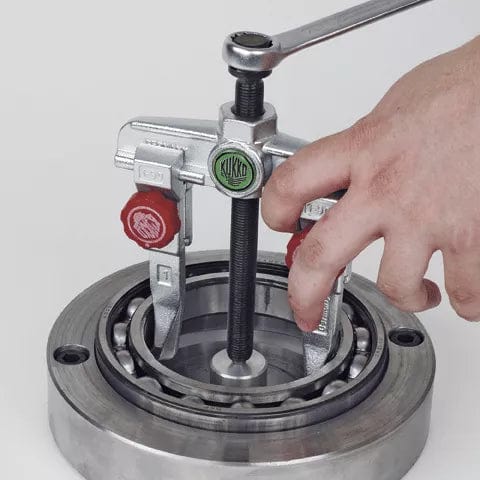

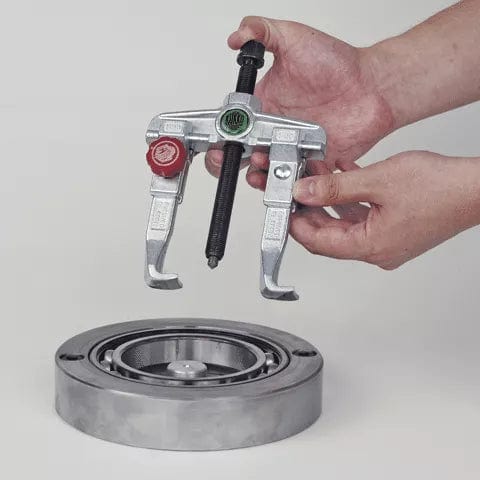

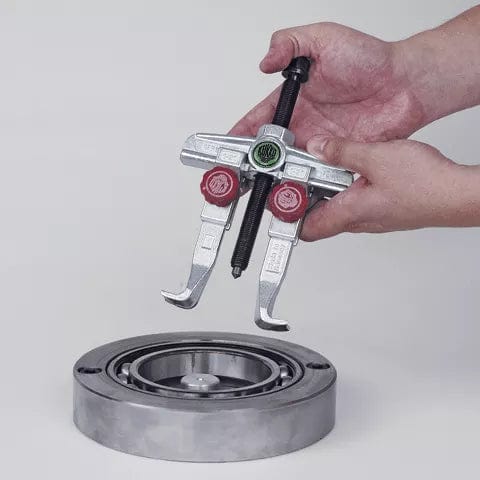

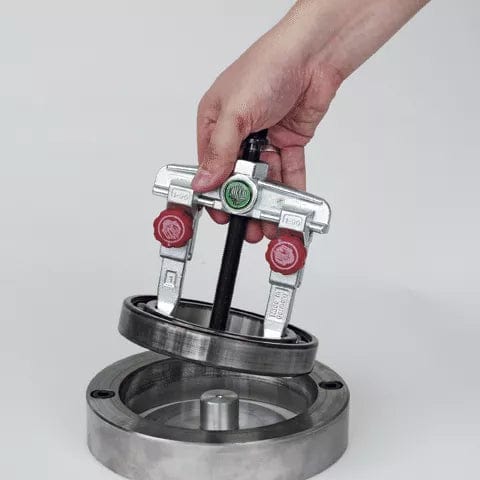

• Turning the pulling hooks enables them to be used both internally and externally.

• Suitable for pulling asymmetric workpieces.

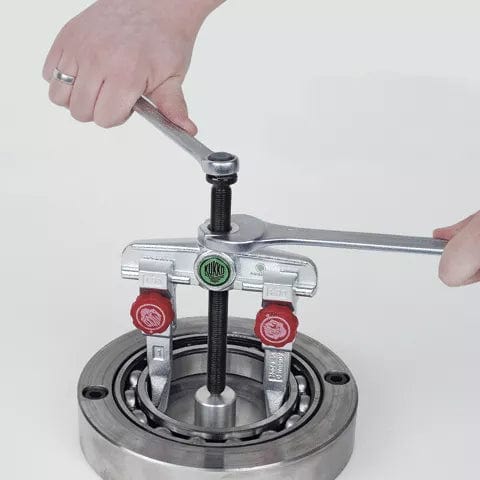

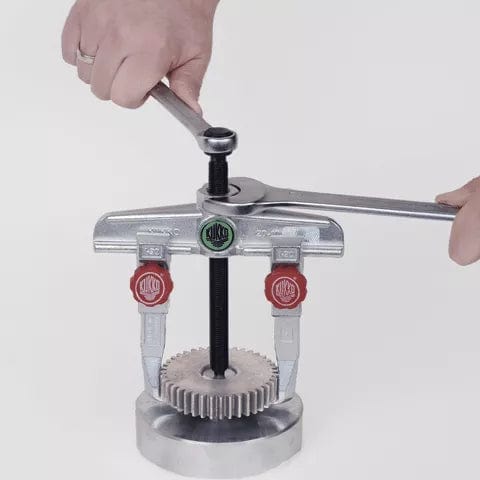

• Spindle head band prevents the wrench from slipping off.

• Cross-beam with hexagonal profile for good grip.

• Almost all components available as replacement parts, time-saving order process thanks to numbering system.

• Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.

• Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.

• Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.

• Stability support from optional series 219 clamp.



KUKKO quality standards

• Quality made in Germany.

• Strong design, high performance and long service life.

• Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

• Safety label to ensure protection of intellectual property.

• A tube of KUKKO special grease included for pressure spindle.
