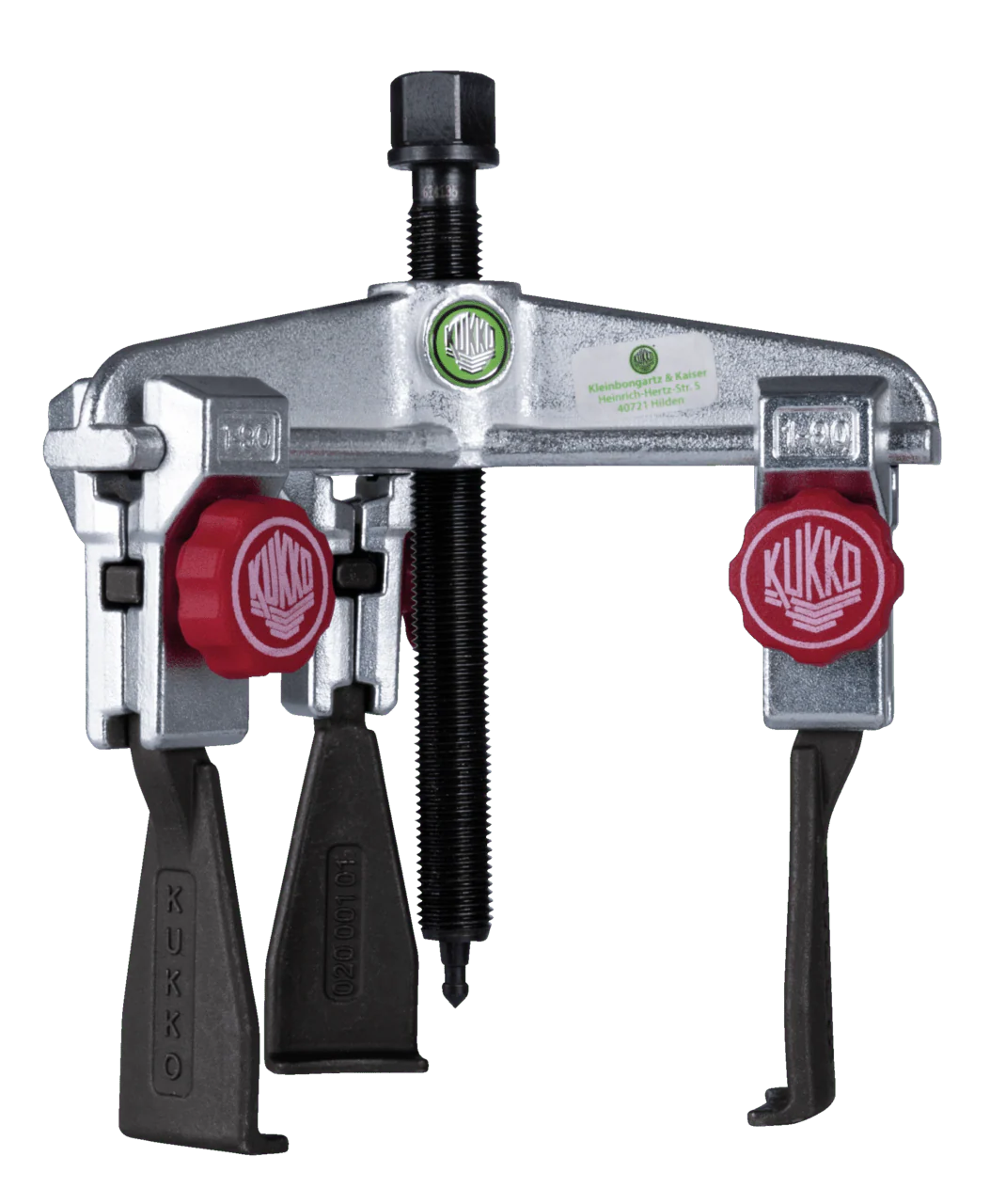

Kukko 30-2+S Universal 3-jaw External And Internal Puller - 1 3/8 - 6 3/8 inch (35 - 160 mm)

• For removing bearings, gears, discs, etc. for tight or difficult-to-access spaces.

• Standard pulling hook with quick adjusting capability quick adjust.

• Parallel pulling hooks in every position, even with a full load.

• Pulling hooks with infinitely variable adjustment on the cross-beam.

• Optimal adjustment of the spindle to the shaft with a 2-sided spindle tip (ball and tip).

• Mechanical pressure screw.

• Milled thread treated with a special coating.

• Two-arm design for space-saving operation.

• MPN #: 30-2+S

• Shipping Disclaimer: If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute	Metric	Imperial
Spread	35 - 160 mm	1 3/8 - 6 3/8 inch
Depth	150 mm	5 7/8 inch
Spread used internal	100 - 220 mm	3 7/8 - 8 5/8 inch
Space below	4 mm	3/16 inch
Space next to it	19 mm	3/4 inch
Hexagon drive (male)	22 mm
Maximum load	5 t	5.5 US t
Maximum torque	120 Nm	88.5 ft lb
Weight	3.79 kg
Jaws	3	3

Product Data Sheet

Advantage

• A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.

• It can be installed on various pulling hooks and variable reach thanks to jaw extensions.

• Turning the pulling hooks enables them to be used both internally and externally.

• Suitable for pulling asymmetric workpieces.

• The spindle headband prevents the wrench from slipping off.

• Cross-beam with a hexagonal profile for good grip.

• Almost all components are available as replacement parts, a time-saving order process thanks to the numbering system.

• Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.

• Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.

• Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.

• Stability support from optional series 219 clamp.



KUKKO quality standards

• Quality made in Germany.

• Strong design, high performance and long service life.

• Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

• Safety label to ensure the protection of intellectual property.

• A tube of KUKKO special grease is included for the pressure spindle.
