Kukko K-2030-20+S+B Universal 2-Jaw and 3-Jaw Puller Set with Two Different Pulling Hooks Types
HomeStore

Kukko K-2030-20+S+B Universal 2-Jaw and 3-Jaw Puller Set with Two Different Pulling Hooks Types

Kukko K-2030-20+S+B Universal 2-Jaw and 3-Jaw Puller Set with Two Different Pulling Hooks Types

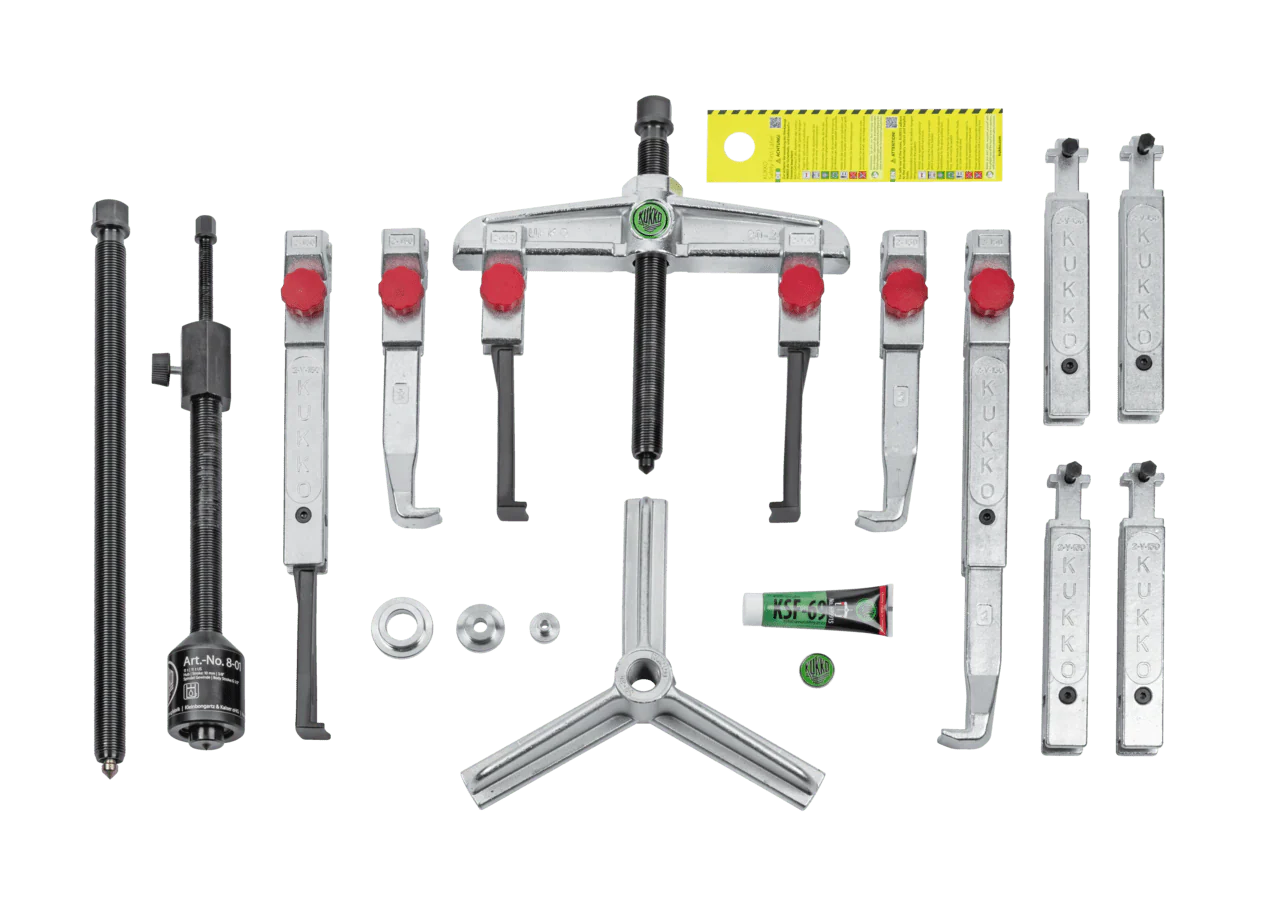

Set Contents:

  • 2Ā Mechanical pressure spindle.
  • 2 Quick adjusting jaws (pair).
  • 2 Narrow, quick adjusting jaws (pair).
  • 2 Quick adjusting jaws (pair).
  • 2 Jaw extensions (pair).
  • KUKKO grease for pressure spindles.
  • 2-jaw cross bar.
  • 3-jaw cross bar.
  • Pressure pad bricks.

Ā Description:

  • For universal use when pulling off transmission gears, bearings, pinions and synchronizer bodies.
  • This set contains the basic equipment for the 2- and 3-arm pullers needed in every workshop. Additionally the set is now equipped with two pulling hook variants.
  • The extensions included can increase the pullersā€˜ clamping depth up to max. 300 mm.
  • Two arm version for space-saving work. Three arms ensure even load distribution for an especially securehold on the part to be pulled.
  • In any position it is used, this modelā€˜s design allows parallel pulling hooks, even under a full load.
  • The part to be pulled lies only on the support surfaces of the pulling hooks and is pulled off gently.
  • The cross-bar of the 2-arm puller has a hexagonal profile, allowing use of a wrench for counterholding, when needed.
  • The spindle heads have a band that prevents the wrench from slipping off during the pulling process.

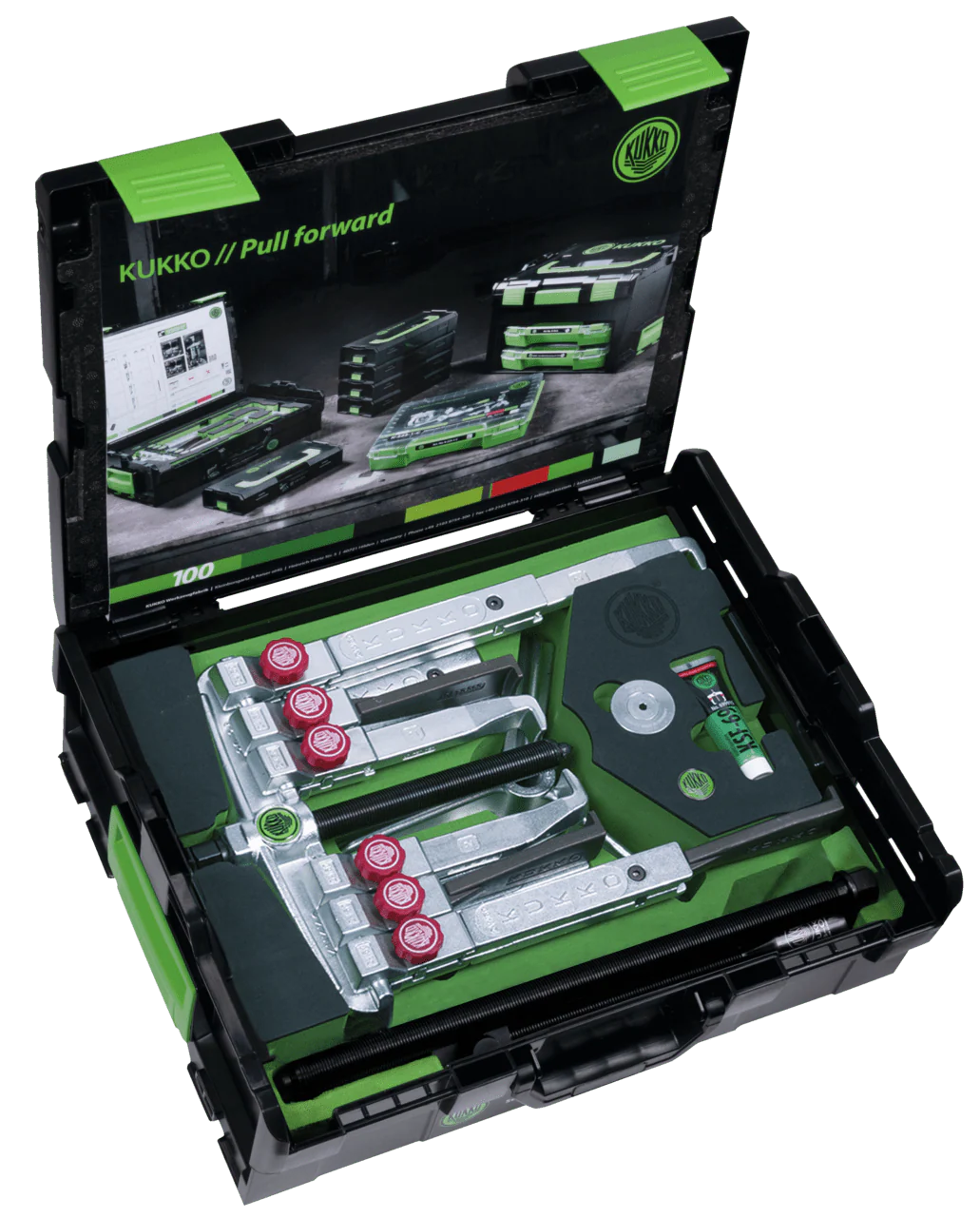

  • In the approvedĀ KUKKO-L-Boxx system. With a new front handle for superior portability.
  • Note: The 8-01 hydraulic spindle can only be used together with standard hooks.
  • MPN#:Ā K-2030-20+S+B
  • Shipping DisclaimerĀ : If the product has to ship directly from the manufacturer it may take 5-7 business days.

Ā Specifications:

Type
2 And 3 Jaw External And Internal Puller Set
Load Capacity Ā 7.5 tons
Maximum Spread 7.87 inches
Maximum Reach 23.63 inches
Jaw Opening 7.88 inches
Jaw Thickness 4.76 mm
Jaw Width 1.25 inches
Weight 28.33 lbs.
Country of Origin Germany
Prop. 65 Yes

Ā

Ā

Advantage

  • Strong construction, high performance and long service life make it ideally suited for use in the commercialvehicle sector.
  • By turning the pulling hooks, the pullers can be used both externally and internally.
$2,074.50
